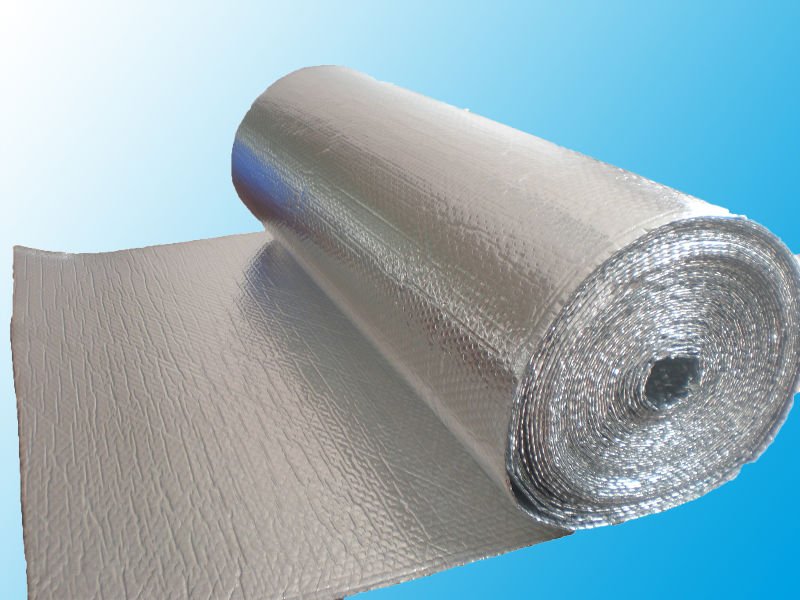

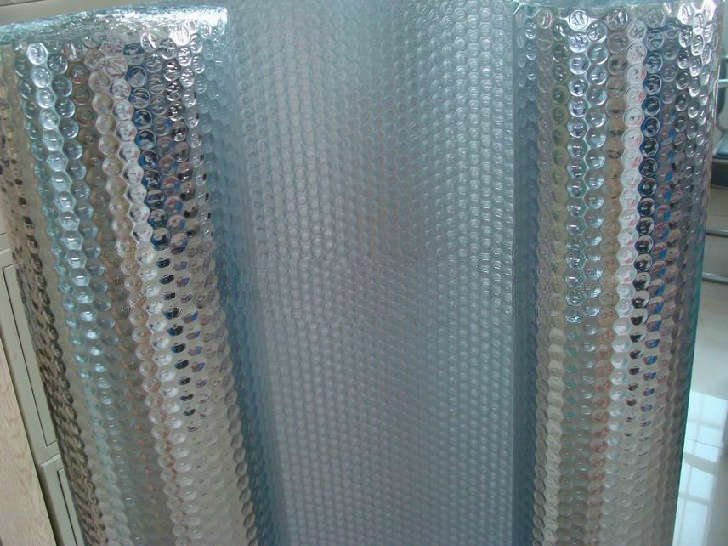

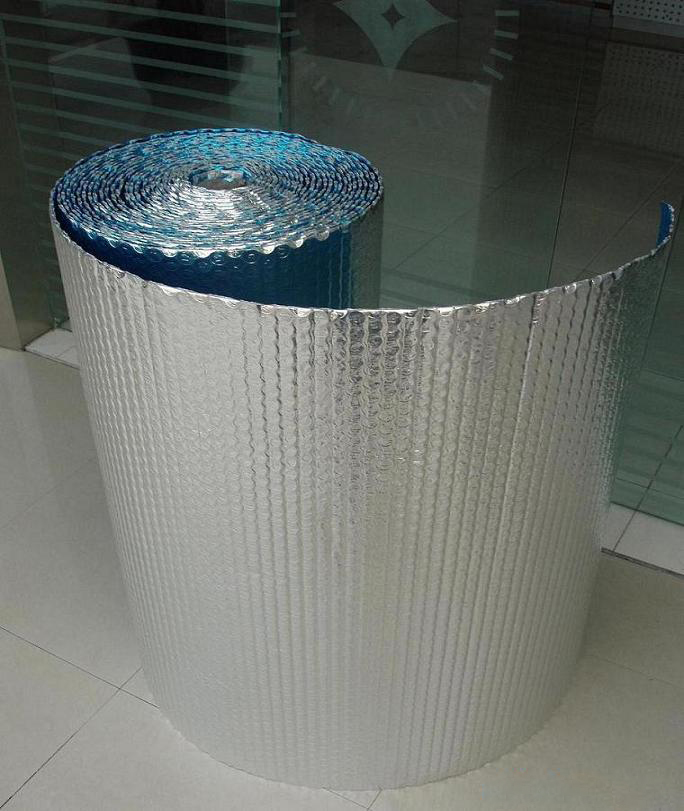

1.  Item:  bubble film with Aluminium foil laminate

Type:

a.      double-sided bubble film with one-side aluminium foil.

b.      double-sided bubble film with double-sided aluminium foil.

2.  Material :  bubble film + aluminium foil ( made of PET film by vacuum plating)

Aluminium foil color : silver, or various colors

3.  Specifications

Bubble diameter:  6mm, 10mm, 25mm  　
Bubble height: 3mm, 5mm, 10mm
Aluminium foil thickness: 0.015mm,0.03mm, 0.05mm.

Roll width: 510-1800mm

4. Typical Applications:

This product is used in roof, sandwich wall and flooring of building with following benefits,

a.  Roof heat insulation, as a barrier to block 80% thermal energy between outside and inside of building.

b.  Reflecting heat radiation on rooftop,

c. Moisture proof, room acoustic insulation and flame proof for flooring underlay and sandwich wall,

Waterproof and shock proof  for the ground and of buildings .

Besides, it is also used for pipe insulation and fireproofing in some public construction projects.

5.  Physical parameter

Weight: 55g/m²----200g/m²

Antistatic value: 10⁶Ω～10¹¹Ω

 Fire protection classification :  Available in V0, V1, V2 standard

6.  Features

Lightweight, non-toxic, eco-friendly,  anti-static, waterproof, shockproof, flexible, recyclable,

corrosion resistance, resilience and flexibility, moistureproof,  abrasion resistance, etc.

Besides, bubble film and EPE or aluminium foil can form a laminate & composite multilayered

 structure by heat lamination process .
