1. Item:  Fireproof EPE foam with pure aluminium foil

Type :

a.  Fireproof EPE foam with single-sided pure aluminium laminate

b.  Fireproof EPE foam with double-sided pure aluminium laminate

2.   Material:  Fireproof EPE foam + aluminium foil

Pure aluminium foil color : silver,

Fireproof EPE foam color : white, or various

3. Specifications

 EPE thickness: 2mm ~10mm

 Pure aluminium thickness: 0.015mm--0.05mm

 Width: 1000mm – 1500mm

4. Typical Applications:

This product features an outstanding resistance to infrared ray and ultraviolet ray and widely used

in roof, wall and flooring of building with following benefits.

a.  roof heat insulation

b.  reflecting heat radiation on rooftop,

c.  moistureproof, room acoustic insulation and flame proof for flooring underlay and sandwich wall,

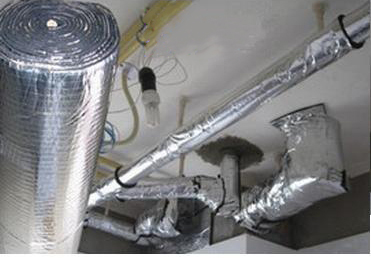

  besides, it is also used for pipe insulation and fireproofing in some public construction projects.

5.   Physical parameter

 Density   20-30kgs/m³
 Tensile strength    3.4 kg/cm²
 Tearing strength   2.6 kg/cm²
 Elongation (70℃)    125%
 Shrinkage   0.75%
 Working temperature    -60℃～ 80℃

 Thermal conductivity   0.0258 kcal/m.h.c

 Fire protection classification : V0, V1, V2 on customer demand

6. Features :

a. Lamination is good, no peeling off, thickness and Length on customer’s demand .

b. EPE foam and pure aluminium foil combination can enforce the better tensile strength, abrasion

 resistance , airproofing and waterproofing, and have a fine surface. And pure aluminium foil

 shows better barrier performance than any other vacuum plated aluminium foil.
